RoboHelp Gems

See this thread with David Kinyon's Correct Answer.

Create an image for the watermark. In this example I created a PNG in Snagit and gave it a transparent background. I saved that in the same folder as the CSS file.

Next I added this to the CSS file. You can style that as required.

body {
  background-image: url('watermark.png');
      background-repeat: no-repeat;
      background-position: center;
      background-size: contain;
      background-attachment: fixed;
}

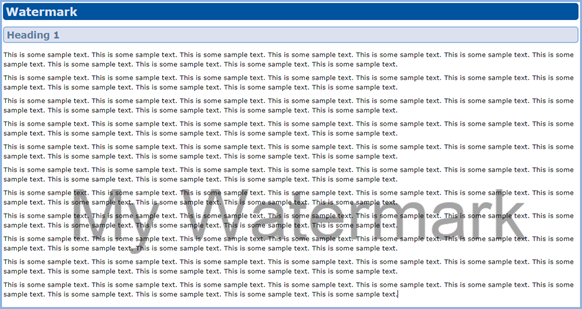

That gave me the watermark below.

The watermark will not appear in a Word output but does appear in PDF outputs.

When you generate a framless output you can choose between the terms being shown as a popup, expanding text or a tooltip.

By default popups use a rather large font compared with what most users would set as their normal paragraph style. This cannot be changed in the template but there are two solutions.

Both require the following in a CSS file. You need to add this as a minimum. You can also define a different colour, different font and so on.

.rh-popover {

  font-size:8pt;

}

You can either add that to

• The templates layoutdiff.css in the project's Publish > Skins > templatename folder.

  OR
• Create a CSS that you add in the template's User Assets.I recommend this option because it can then be exported to other projects or templates. You can call the CSS whatever you want but I suggest userassets.css so that its purpose is clear. Add the CSS in the Layout section of the template.

Expanding text can be configured in a similar way using this definition.

.expanding-content {

  font-size:8pt;

}

Tooltips cannot be edited as they use the browser's functionality.

After applying 2022 Update 4 you will find that blank lines created for spacing purposes show in the authoring panel but not in any output. This is because of a change Adobe had to make to fix a PDF problem.

The solution for all outputs is to add the following to your CSS.

p:empty {
/*Enter desired values.*/
padding-top: 0.0pt;
padding-bottom: 16pt;
}

The values can be expressed in your preferred unit of measure. Here I have used points to help explain how it works. In the CSS I tested with, the normal <p> style font is 10 points with padding below of 6 points. By adding padding in the CSS of 16 points gives the same depth as a blank line.

If you have blank lines within a table, you also need to add the following to your CSS.

td:empty {
/*Enter desired values*/
padding-top: 0.0pt;
padding-bottom: 16pt;
}

UPDATE - An issue with dropdowns that was previously included here has proved to be unrelated.





If an image style is applied to an image to put a border around it, that border will not show in the thumbnails or the expanded image in the output.

The easiest solution is to simply apply a border to the image in an image editor such as Snagit. The border will then show in your topic, the thumbnail and the expanded thumbnail.

The correct method is more complex but has the advantage that you can easily change the colour later or set different colours for different outputs. This is what you need to do.

Create an image style in RoboHelp

This allows you to see the border when creating content. It also lets RoboHelp write the CSS code so that you can paste it into the other definitions you will require.

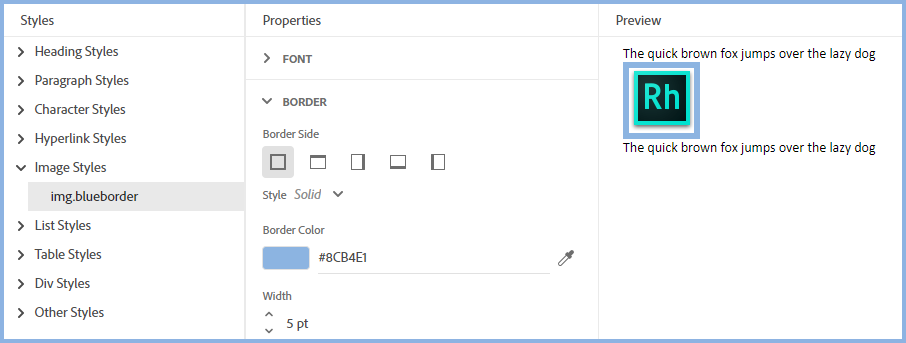

This is a simple blue border created in the CSS editor.

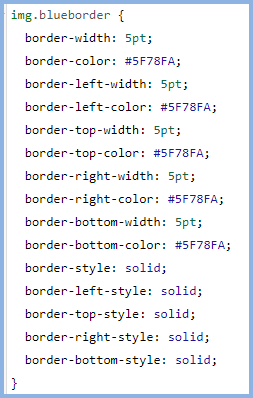

In source view the code is as below and that can be copied and pasted into the other definitions that will be required.

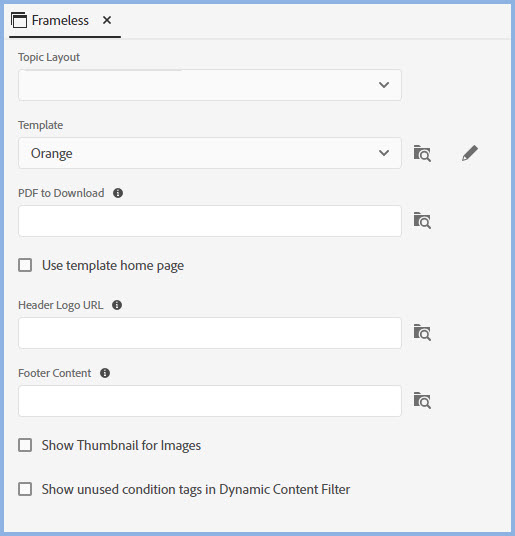

If you now generate an output without selecting the Use Thumbail checkbox, the image will have a blue border as defined above.

Thumbnails

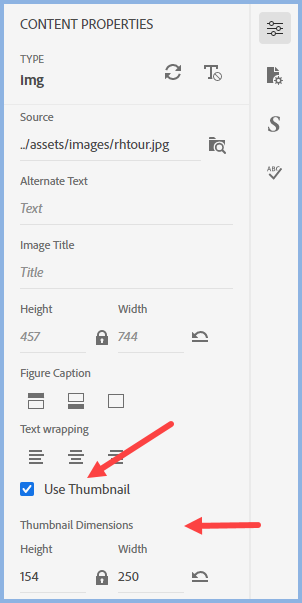

If you want to use thumbnails, you need to click the image in the topic and select the Use Thumbnail checkbox, then set the size of the thumbnail image as shown below. In this example the thumbnail size has been set to roughly one third of the full image.

Without any further work, you will both the thumbnail and the expanded image but they will not have any borders.

The Solution

You need to create an additional CSS file that will be added to User Assets in your skin.

Depending on your requirements two or three definitions need to be included in this CSS. For the purposes of this example, that CSS will be called thumbnail_border.css.

Open a text or CSS editor and create the required definitions, which are:

.popup-image-thumbnail

.RH-LAYOUT-thumbnail-image

.RH-LAYOUT-thumbnail-close (Optional)

In the first two you can simply paste in the source code from the img.blueborder style you created in your main CSS or you can define it as required.

The .RH-LAYOUT-thumbnail-close definition is only required to reposition the white close icon or define a different button.

Save the file in a temporary folder as thumbnail_border.css.

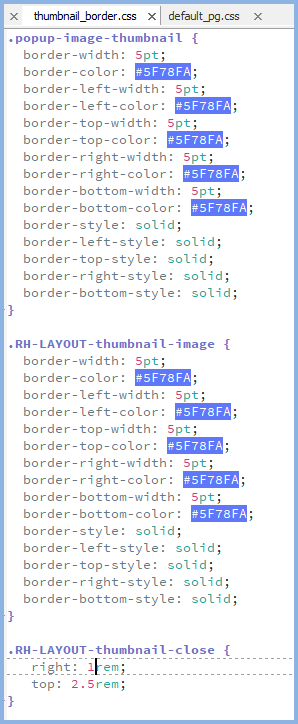

The CSS will look something like this.

The .RH-LAYOUT-thumbnail-close definition is optional and these declarations reposition the close icon to within the image.

You can also change the close icon by adding

background-image: url('path to and image filename’);

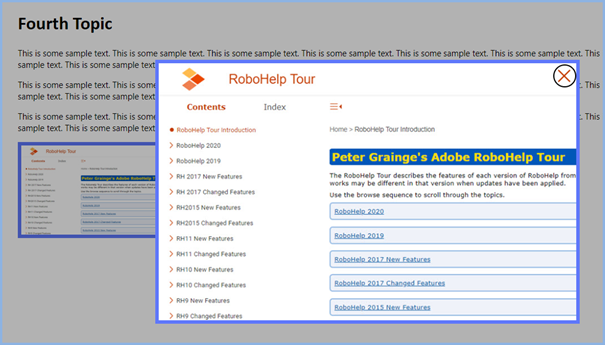

Note the button is now within the image rather than outside as above.

Adding thumbnail_border.css to the skin

Open the skin editor for your output and click Add Asset. Then browse to wherever you saved thumbnail_border.css. That will then be imported into the skin folder of your project. Edit the copy in your skin folder if you later need to make further changes.

Generate

Generate your output and now the thumbnail and the expanded image should have the required border.

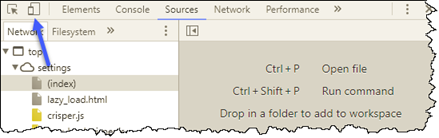

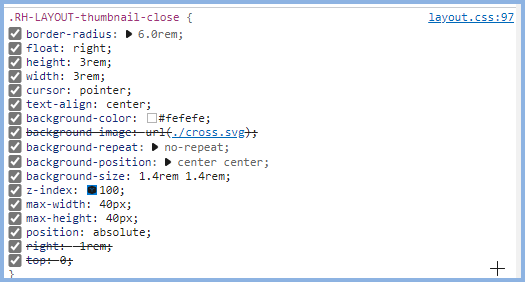

Using your browser's inspect feature

Generate an output and right click on any part of it, for example the close icon above, then select Inspect. A panel will open showing the definition for that.

What is shown here are the default styles from the skin. The lines crossed through are ones that have been defined in thumbnail-border.css that have overwritten these defaults.

 If you click on the values shown above, spinning the mouse wheel changes the value so that you can see how things will look when you define the same selector in thumbnail_border.css.

Add a DIV style to your CSS file. You can add any other styling you want such as a background colour.

In the CSS add something like this example, which is specifically to apply just an indent. The class name of the indent can be whatever you want.

div.indent {
margin-left: 24pt;
}

In your topic go to source view and add the div tag immediately before whatever you want it applied to.

<div class="indent">

On the line below where the indentation is to stop being applied, add the closing div tag.

</div>

1. Open Find and Replace.
2. Enter this regular expression in Find
   rh-index-keywords" content="(.*)".*\/>
3. Enter a space in Replace.
4. In Find and Replace Settings select only Regular Expressions and Find in Source View.
5. Click the Replace icon.
6. Check the index tab is now empty.
7. If any or all of the index entries show, first close and reopen the project.
8. It should be clear now but there may be just one index entry showing. If there is, close the project again and in Explorer go to the Index folder and open the IDX file in a text editor.
9. Delete the single keyword that is showing so that the file reads as below.
   <?xml version="1.0" encoding="UTF-8"?>
   <keywords>
   <keyword> </keyword>
   </keywords>
10. Reopen the project and the index should be empty.

To add a background image to all your topics add a line to the body tag in your CSS file

body {

background-image: url("your-image-name.png");

}

This assumes the image is in the CSS folder. Otherwise you need the relative path. It works for both online and PDF outputs, I have not tested it in Word. If you only want it in one output, then create a copy your CSS and just use the copy with the tweak for that output.

If you add it to the master page for that output that will override the topic CSS and give you your image in just that output.

****************************************

To add the image to just one topic such as a PDF cover page, the steps are different.

Add this to your CSS

div.coverdiv {

min-width:100%;

height: 2000px;

max-height: 100%;

background-image: url('your-image-name.png');

}

This assumes the image is in the CSS folder. Otherwise you need the relative path.

The height shown above is way above what you need but the max-height will stop it splling over.

In the cover page add

<div class="coverdiv"> after the body tag and before any content and </div> before the closing body tag.

CLASSIC VERSIONS

Edit your CSS to include the font-weight attribute as below.

li {

font-weight: bold;

}

li p {

font-weight: normal;

}

NEW UI VERSIONS (Added 25 June 2021)

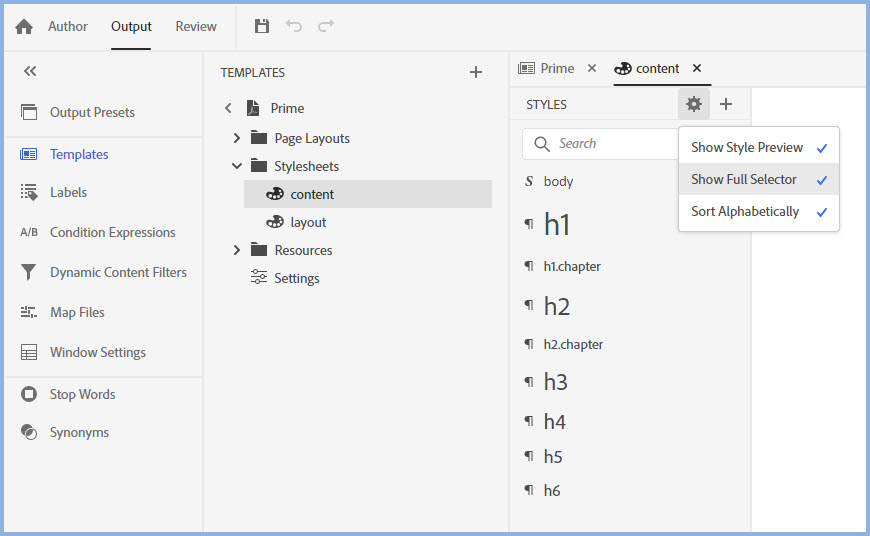

This can be done in the CSS editor.

CLASSIC VERSIONS

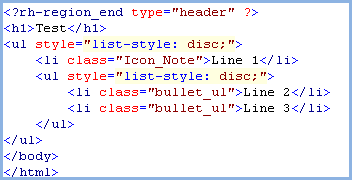

If you have say a numbered list item followed by say a bulleted list, you may find the closing tag for the first list appears after the second list.

This is a bug but there is a workaround.

Create a paragraph style called Spacer or suchlike. Set the font to be 1pt and no top or bottom margin. After the first list, insert a line using that style, then create the second list. With just 1pt between the lists, the space line will not be noticeable.

CLASSIC VERSIONS

RoboHelp 9 introduced the ability to create page breaks that work when topics are printed from the online help and survive the trip to printed documentation. Generally the feature works fine but if the style following the page break is different from the style preceding it, a blank line is inserted in whatever is printed.

This alternative method avoids that problem and will work in any version of RoboHelp.

Open your CSS file and add this line.

.break {page-break-before: always;}

The first instance of the word "break" (in red) is the name of this style and can be changed to anything else you prefer but stick to alpha characters and avoid spaces.

When you want to insert a page break, go to the beginning of the line that is to be on the next page. Select "break" from the style dropdown. In the design editor you will see the page break symbol on the line above.

Authors who have produced WinHelp will remember the non-scrolling region, an area at the top of the screen that remained visible as the user scrolled down the topic. From time to time people have asked for a method of achieving the same with WebHelp.

The CSS style below will give you what you want and the lines are commented to help you understand what each part does.

H1 {
font-weight: bold;
font-size: 18pt;
/* sets height of scrolling region */
line-height: 30pt;
/* fixes the region to the position set by the following lines */
position: fixed;
/* sets position of top of scroll region relative to container */
top: 0pt;
/* sets position of left of scroll region relative to container */
left: 0pt;
/* sets position of right of scroll region relative to container */
right: 0pt;
/* sets all four margins */
margin: 0pt;
/* padding top right bottom left */
padding: 10pt 0pt 10pt 10pt;
/* prevent body text being seen behind non-scrolling region */
background: white;
/* adds a visible line at the bottom of the non-scrolling region */
border-bottom: 1px solid #000000;
}

With that alone your topic will look fine in Design View but in a browser the first few lines of text will be hidden behind the non-scrolling region. You can add some blank lines to compensate but it's probably easier to add

padding-top: 50pt;

to the body tag.

You will see too much white space at the top of the topic in Design View but it will be OK in the browser.

Change the measurements to suit your requirements.

Note: This method does not work in CHMs.

When you view topics or web pages, you may see the author has included a Return to Top link at many points in the page. Leon came up with a better solution, one link that is always at the bottom of the page!

With slight amendments and some of my comments, this is what he posted.

Leon's Post
We found that too many links became overwhelming. We decided to only provide a Return to Top at the bottom of each scrollable topic. I worked up a scrolling (floating) link. (Note the "z-index: 1;" setting in the .css file; that causes the link to always be layered over anything else on the page.)

It looks like this:

This is the code to be used within each topic and within your (MyProject).css file:

At the top of each topic (I have it just under the H1 heading)

<p class="top"><a class="topic" title="Return to Top" href="#">↑ Top</a></p>

In your .css style sheet file (place the p.top after the default p & LI.p settings, and the A.topic's after the default A settings)

p.top {
     position: fixed;
     background-color: #f5f5dc;
     padding: 2px;
     right: 12px;
     bottom: 5px;
     z-index: 1;
}

PG: I did not include the link definitions in my CSS and it worked fine. That may have been because I already had appropriate definitions. See what works for you.

A.topic:link,
A.topic:visited {
     color: #4169e1;
     font-size: 80%;
     font-weight: normal;
     text-decoration: none;
     font-color: 000080;
     padding: 15;
}
A.topic:hover {
     color: #4169e1;
     font-size: 80%;
     font-weight: normal;
     text-decoration: none;
}

Simply customize my settings to suit your organization's style and formatting needs (fonts, location, padding, border, etc.).

Sometimes you want to enter characters such as © or something more obscure such as ¶ or ∑ that are not in RoboHelp's symbols. Here's the easy way that accesses all the characters available on your PC, including unicode, provided you have some unicode fonts! Look for Arial Unicode MS.

In Windows, go to Start | Run and type in charmap. Locate what you want, click Select and click Copy, then paste it in.

Select the Advanced view and then Group By "Unicode SubRange". An additional dialog appears making it easier to find what you need.

Sheela worked out this method.

1. Name the cell(s) you want to refer to in the Excel sheet. Insert | Name | Define.
2. Create a link to the file (normal procedure in RoboHelp)
3. Go to the TrueCode tab and insert # and the name you gave as a suffix to the link. (It doesn't work if you attempt to do this in the hyperlink dialog.)
4. Save the topic as usual and check the link in Preview mode.

Sheela advises that RoboHelp will prompt to import the spreadsheet and that has to be done if the link is to work.

RoboHelp allows you to add a tooltip over images by filling in the Screen Tip field in the insert images dialog. Perhaps you want to add a tooltip somewhere else, maybe over a paragraph? Hold your mouse over this paragraph. It's as simple as the html below.

<P><acronym title="Your tooltip">Your paragraph of text.</acronym></p>

Update 28 Mar 2012 - acronym is not supported in HTML 5. Try abbr instead.

If you want something more sophisticated, Leon Descoteaux recommended Walter Zorn's really neat solution.

Many authors have experienced problems getting their links to appear as defined in their style sheet. Thanks to Leon Descoteaux for posting this useful snippet.

Make sure that the links are arranged in the following order inside your style sheet, including any link classes you might be using, such as plain and fancy:

A:link

A:visited

A.plain:link

A.plain:visited

A.plain:hover

A.fancy:link

A.fancy:visited

A.fancy:hover

Also look for any embedded hyperlink styles. They can get written into topics created when you import a Word document. See Importing Using RoboHelp for more information about this point, even if you are using an earlier version.

CLASSIC VERSIONS

Whenever you create a new project, you just get the standard colours when you click Format | Colors.

Ever since RoboHelp X5 and above the colours are defined in the file rhcolor.apj. Once you have the colours you want in one project, you can copy that file to other projects.

You might want to keep variants like rhcolor01.apj, rhcolor02.apj etc. Just rename the one you want and copy it into a project.

You can also edit the file. Open it in a text editor and create a new section. It will be obvious what you need to do.

CLASSIC VERSIONS

1. Click Tools | Options | Tool Locations tab
2. Click an existing extension, this will populate the Program for Editing and Program for Viewing fields with the application for that file type.
3. In the field below the listed extensions, type over the whatever is shown with the file type to be added, precede it with a full stop / period (for example .CSS).
4. Click the Add button.
5. Leave the Program for Editing and Program for Viewing fields unchanged if they are displaying the required editor for the new file type, otherwise navigate to the editor / viewer to be used.
6. Click OK.
7. Add the file to be edited to baggage.
8. Right click the file in the baggage folder and choose Edit from the context menu or double click the file. The file will open in the required application.

NEW UI VERSIONS

1. Click Edit > Preferences > File Association
2. Enter the file extension in the top left field.
3. Click the browse icon and navigate to the program to be used.
4. Click Open.
5. Click the + icon.
6. Click Done.

CLASSIC VERSIONS

fm1476's first thought was that there was a hidden dialog. However, it proved to be that there were pending changes to the document. Once they were accepted, the document imported without further problems.

CLASSIC VERSIONS

Sometimes when you import a topic, RoboHelp reports that the topic, all images and other associated files have been imported but you cannot see the images in Project Manager. A check via Windows Explorer shows they are there but not according to Project Manager. This is easily fixed. In Project Manager, create the folder using the name given in Windows Explorer. Not only will the folder be created, suddenly all the images will appear.

If some images are showing and others are missing, try renaming the folder. On changing from Images to Images1 for example, you will likely find all the images suddenly appear. Then you can rename again from Images1 back to Images. This tends to occur more when a folder only has images.

Add these lines to the head section of your topics.

<meta http-equiv="Pragma" content="no-cache" />
<meta http-equiv="Expires" content="-1" />
<meta http-equiv="Cache-Control" content="no-cache" />

When generating an output, you may see one or more warnings such as the one below.

Skipped copying external file "path and filename"

It is not a warning to be ignored as it is telling you that a link in one of your topics is pointing to something that will not be in the output.

The link is to something on your local drive or a network drive and browsers will not allow access to them for security reasons. Users will get a Page Not Found warning, hence you need to fix the issue.

The warning is written as an absolute path but the link is written as a relative path so searching on the reported path will not find the link. It would be more helpful if the report stated the link as written and I have suggeted that to Adobe.

Meantime you have to search on the filename but that can give many false reports as you may have lots of links to the target, with only one that is wrong. Search on parts of the path as well.

The one thing you can be sure of is that somewhere in your project, there is a bad link and you do need to find it.

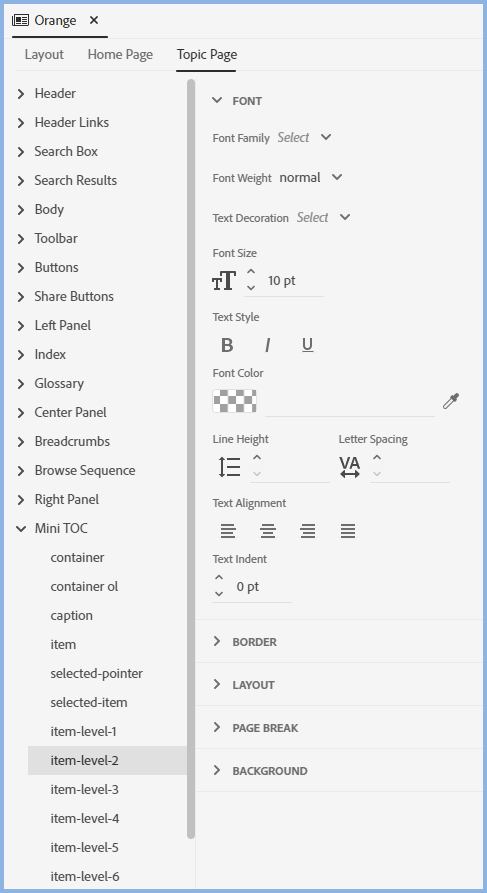

By default all the headings shown in the minitoc have the same font for all levels. It helps users if the entries are indented according to the heading level as shown in the topics in the RoboHelp Tour on my site, as shown in this example.

In most minitocs the headings shown start at H2. Click on that level in the skin editor to see the configuration options.

In the minitoc on my site the first level shown is item-level-2. That has no indentation.

You will see that the next level is indented. That has been achieved by going to Layout > Padding and applying a left margin of 24pt.

The colour applied should be set by going to the Font settings and applying the required colour. At the time of writing this though that is not working because of a bug. It will be fixed in a future version so check first. If it still does not work, there is an easy workaround.

Create a CSS file as below but with your colours. In the skin editor go to Layout > User Assets and add that CSS file.

.RH-LAYOUT-MINITOC-item-level-1 a { color: rgb(0, 84, 159); }
.RH-LAYOUT-MINITOC-item-level-2 a { color: rgb(0, 130, 235); }
.RH-LAYOUT-MINITOC-item-level-3 a { color: rgb(110, 110, 110); }

Note there is a little catch. In the RoboHelp Tour the minitoc only uses Item Levels 2, 3 and 4. In the CSS file you create the numbering applies to the levels used. Thus Level 2 in the skin editor is Level 1 in the CSS.

This is the information Adobe gave me on this subject.

****************************************

Gzipped(.gz) compressed files are used to improve search performance by reducing the download time, hence reducing the overall time for search results.

Since compressed files are smaller in size they, load faster. However in order for this to have any effect both browser and web server have to be configured to use them. Most modern browsers are configured to always request compressed files (unless user has disabled it) so there is nothing much to be done by user, but the web server might or might not have enabled them so that must be checked.

Whenever a browser makes a request for a compressed file such assearch_db.js, the web server will first look for a file named search_db.js.gz if it is present then it will be served, otherwise the original file search_db.js will be served.

The amount of time the browser takes o decompress these files is negligible compared with the time it will take to download an uncompressed file. In the end RoboHelp can only generate these files, which it does for all javascript files, but it has to be hosted and enabled by end users.

****************************************

There is reference to GZ files in this RoboHelp help topic.

By default the Search box shows "Search...". Add some text so that users can get exact matches only.

Open Labels in the Outputs tab and look for Frameless > SearchPlaceHolder and edit the default text.

When you generate help with the Glossary Style set to Expanding Text, there is no obvious way to change the colour of the expanding text. What you need to do is go to the CSS editor and create a Character style "expanding-content and style that as required.

Classic had an checkbox for HTML Maintain Heading Levels.

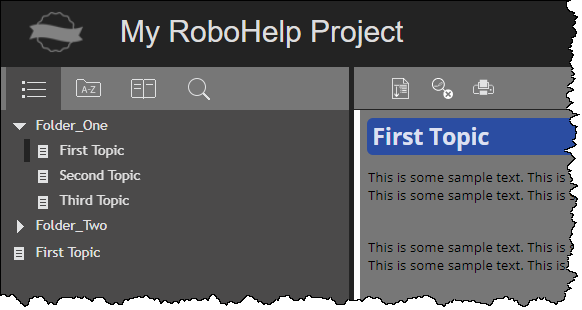

If not checked the TOC looked correct but there was a problem in the body. In a simple TOC with just two levels of books, the second level book would have Heading 2 applied. Assuming the topics within that book started with Heading 1, that would get relegated to Heading 3 and all other headings in the topic would also get relegated. That could make a mess of the body of the document.

If checked the topics remained as designed but in the TOC the topic title would be Heading 1 while the book it was within would be Heading 2 or lower.

Neither were ideal. In the new UI versions Books have become Sections on the basis that physical books have chapters, there is now one book with many sections.

When creating the book TOC in RoboHelp you can still have lower level sections but when you generate onlt the top level section titles will appear in the Word. The topics in lower level sections will become part of the previous top level section.

A workaround to consider is to set all top level sections to CAPS and then move the lower level sections to become top level sections but leaving them in mixed case. That will produce a TOC in Word with all the section names.

UPDATE This issue was fixed in Update 6. Apply any later update and you should not see this problem.

If you apply Restart Numbering in a list you will see incorrect numbering in Firefox. This follows a change in how Mozilla interpret the counter-reset property.

The problem is more likely to be seen where Auto Numbering is applied to a paragraph or heading style but it does also affect ordered (numbered) lists.

Previously if you applied Restart Numbering, every subsequent item in the list would also change. Following the change in how Mozilla interprets the counter-reset property it will only affect the list item to which it has been applied. Edge and Chrome continue to support the generally accepted interpretation.

Fortunately there is a solution. Use RoboHelp's Find and Replace to search for "counter-reset" and replace it with "counter-set".

You will need to select Find in Source View. The backup settings are up to you. Personally I would create a backup of the whole project and then deselect those options to avoid having to remove the backup files later.

Generation can fail for various reasons so this is a general guide as to what to do.

View the Log

Right click the preset and select View Log. That should tell you where the problem is.

A common warning is Skipped Copying External File. Somewhere in your topics there is a link to a topic that is not in the project. Often that will be because someone has created a link to a topic in another project by mistake or to an output file instead of the source file.

Create a small TOC

Create a TOC with just one very simple topic and generate using that. If that works it suggests the problem is one of your topics. See the next item.

Divide and Conquer

Create two copies of the TOC used for the failing preset. Delete different halves of the content and generate using those TOCs. If one works and the other fails, you know where the problem is. Keeping repeating the process until you narrow it down to the offending topic(s).

1. Go to the skin editor and select Custom Buttons. Click Add Button and give it a name.
2. Select that button in the Select Button dropdown
3. Add a button image.
4. Insert the line below in the Javascript OnClick Event
   window.location.href = "mailto:someone@somedomain.com?subject=Issue in topic&body=Topic path is " + rh._.hashParam('t'); return false;
   If you do not want the topic url, the line is
   window.location.href = "mailto:someone@somedomain.com?subject=Issue in topic&body=Body text here";
5. In both cases change the address, subject line and body text to what you want.

CLASSIC VERSIONS

Snippet 3 in this section enables you to add a text link or graphic to a topic that will generate an email with a link to the topic. The script relies on the text link or graphic being in the topic but Steph wanted a toolbar button.

He has kindly shared this script. It does not create an email but it does copy the topic title and URL to the clipboard.

Note that not all browsers allow JavaScript to copy data to the clipboard. This method will not work in Chrome and possibly not in Firefox.

You create a new toolbar button in the skin editor using the JavaScript action. Select the Inline JavaScript option and click the Edit icon. The function script is below.

function CopyURL()
{
var myHerf=parent.frames[1].bsscright.location;
var title=parent.frames[1].bsscright.document.title;
if(window.clipboardData)
{
var tempCurLink=title + "\n" + myHerf;
var ok=window.clipboardData.setData('Text',tempCurLink);
alert("Press Ctrl + V to Paste the link in your email");
}
}

The above script will not work if you are using the Dynamic User-Centric Content (Content Categories) feature introduced in RoboHelp 9.

CLASSIC VERSIONS

Click here to find out how to create an email with a link to a topic.

To create an email with the To, cc, bcc, subject and body completed, paste the text below into the True Code view.

<p><a href="
mailto:person1@abc.com;person2@abc.com
&amp;cc=person3@abc.com
&amp;bcc=person4@abc.com
&amp;subject=Hello There
&amp;body=Type your message here.
">Mail To Example</a></p>

Delete any line you don't want. For example if you do not want the body pre-completed, delete the line

&amp;body=Type your message here.

I have added line breaks to make it easier to understand the content. After pasting the html into RH and deleting any unwanted lines, place the cursor at the end of each line and press the delete key once. The only spaces should be the one between "a" and "href" at the beginning and any that appear in the subject or body fields.

CLASSIC VERSIONS

Phrase searches need to be enclosed in quotes but does the end user know that? Probably not so help them with a prompt.

To change the string from the default go to

File > Project Settings > General Tab > Advanced > LNG File Tab

and change FtsInputPrompt to your own string.

You can also change the Index prompt and many other terms used in the output.

CLASSIC VERSIONS

One poster wanted what they described as "a vertical layout in WebHelp similar to that offered in the vertical skins for FlashHelp". This means the TOC appears above the content. They found the solution below.

"I have found that the skn file in !SkinSubFolder! for the project contains two instances of frameset cols = "220,*": changing these to frameset rows = "220,*" seems to achieve the desired effect, and I have not yet found any glitches with the output (at least with IE6 as browser).

NEW UI

Try the supplied Studio skin.

CLASSIC VERSIONS

Philip was working on a RoboHelp project and generating a CHM output, only problem was the index tab was missing! After a lot of poking around Philip found the solution. All his keywords were in the topics. By telling RoboHelp to create future keywords in the HHK index file, adding a single index word and then switching the setting back to store keywords in topics, the problem went away. It seems you need at least one keyword in the HHK index file.

CLASSIC VERSIONS

The font for the toolbar and the navigation pane in WebHelp can be changed by using the skin editor. Changing the font for the navigation pane changes it for the TOC, the Index, the Search and the Glossary tabs. If you want a bit more control then you need to edit some files in the generated or published output, whichever you use:

TOC = edit the font setting in whtdhtml.htm - this affects the items listed in your toc.

Index = edit the font setting in whiform.htm - this affects the text at the top of the pane

Type in the keyword to find:

It does not affect the entries displayed. They remain controlled by the skin setting.

Search = edit the font setting in whfform.htm - this affects the text at the top of the pane

Type in the word(s) to search for:

It does not affect the entries displayed. They remain controlled by the skin setting.

Glossary = edit the font setting in whgdhtml.htm - this affects the text at the top of the pane and the top of the results panel

Term:
Definition:

It does not affect the entries displayed. They remain controlled by the skin setting.

NEW UI

Use the skin editor.

In this thread, LonTheWriter did not want numbering in his PDF output but the screenshot shows it was wrapping to a second line, which would not have been good had he wanted numbering.

To fix either or both issues. open the template used in your PDF/Word template, go to the Stylesheets and open content.css

Make sure the Show Full Selector option is selected. The styles that need editing are the ones showing as h1,chapter, h2.chapter and so on.

If you do not want the numbering, simply deselect Autonumber for those styles.

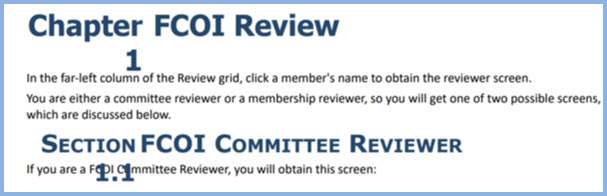

If the numbering is wrapping as shown in the first image, select Numbering as shown below and then increase the Prefix Width until it no longer wraps. Allow a bit more width if double digit numbers will be reached.

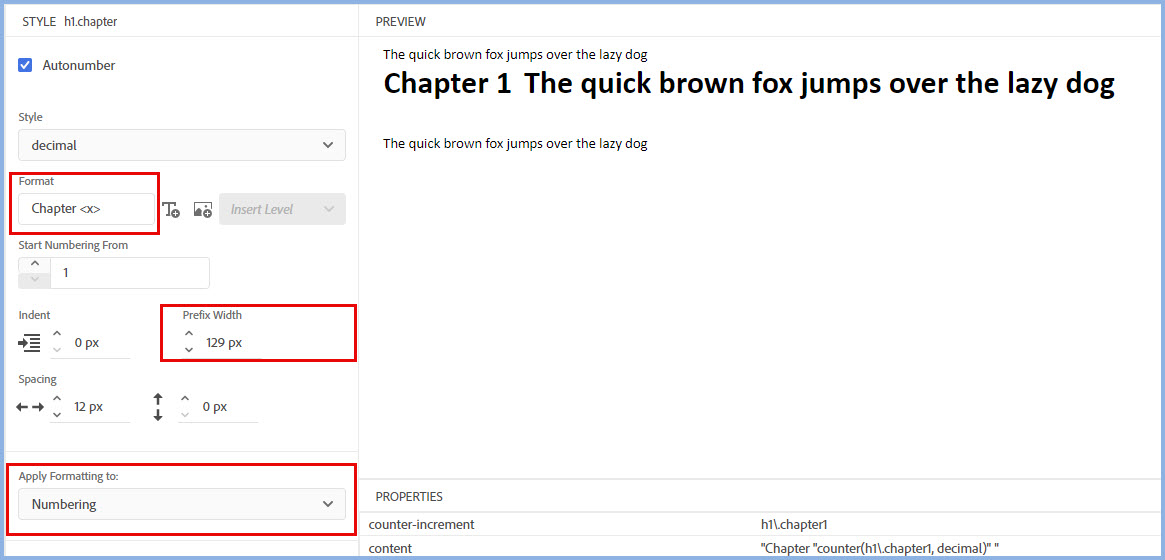

The text "Section" and "Chapter" can be edited in the Format field below or you can remove it so that you just have the numbering.

If you can't get the glossary terms in a topic to link to the glossary, see the steps posted in this forum thread.

For example, in RoboHelp you have created a style with a square bullet but in Word it shows as a round bullet.

This has been reported to Adobe. See RH-12394 | Tracker (adobe.com). Nonetheless, certain settings will map the style pending the bug being fixed. The following will help you understand how to make the correct style come through in Word.

****************************************

WITHOUT A WORD TEMPLATE

1. In RoboHelp create a list style similar to the default bullet style but with a square bullet. Call the list style Square so that there is no mismatch of style names.
2. Generate using the default template and in Word the bullet will be square.
3. Generate using either the Simple or Advanced template, and the bullet in Word will be round.
4. Add the Square list style to the content.css of the Simple Advanced templates and generate, the bullet will now be square.
5. With Exclude All Topic CSS files not selected, the Square style in the topic should have worked without having to add it to the template CSS files. This is the first part of the bug.

WITH A WORD TEMPLATE

The above workrounds do not work with a Word template in the preset. The square bullet in the Word template was not applied in the output. This is the second part of the bug.

RoboHelp 2022 introduced templates to replace Master Pages. For online outputs there is no change in how they function but for printed outputs the changes are significant and differ between PDF and Word outputs. It is explained in the RoboHelp Tour.

This allows for advanced users to go way beyond what can feasibly be documented and that is what one forum user needed. Fortunately Adobe came to the rescue with a solution. See this response in the RoboHelp forum.

I have added a downloadable RoboHelp 2022.2 project. It demonstrates the method and has full instructions. Click here.

It was suggested in a RoboHelp forum posting that printed documentation is outdated and that only online help is required. Here's my response.

****************************************

The correct media depends partly on the content and partly on the users. Has anyone asked your users rather than being prescriptive?

On content, if all the topics are short and easily digested, then online help only can be considered. If they are longer topics, and particularly if the content is complex, then it can be difficult to digest properly on screen. You can argue that any topic can be printed but sometimes you have users who want to improve their product knowledge and that is more easily done by scanning a printed manual and homing in on relevant stuff.

On users, there will always be people who prefer to work from the printed media. For a start they can annotate it. Don't make the mistake that these are older people. I find many younger people prefer this media, again with complex subject matter.

Nonetheless, you could avoid the cost of sending the document to a print-house. What we do is PDF it and ship the PDF as well as the online help. For users who want the online help, they still have it. For users and situations where printed media is preferred, they can print the PDF version in its entirety or in part. You avoid the cost but the customer can still have their printed version.

I think the key is to let the user decide. Horses for courses.

I don't normally cover source control as it is something I have studiously avoided and with no ill effects, indeed, quite the reverse. This snippet is an exception as La Kisha asked about the best way forward as she was going to be joined by another author. The responses were particularly helpful and I felt it worth recording the key points here.

In addition to the information below, Amber Boughen posted in this thread on 7th September 2021 with some useful information.

La Kisha posted

I've been the sole writer at our company for 6+ years. I finally have someone to help me; however, this has introduced a new challenge. We will both be working on the same RH project, and we will be using VSS for source control. I'm not sure how we should be 'sharing' this single RH project.

Does anyone have any best practices for when working in this type of situation?

I have questions such as:

• When the other person is creating Index keywords, what if I have files checked out - how will this affect the adding of keywords?
• When the other person creates new snippets or new user-defined variables, should he immediately check them in and let me know so that I can do a get latest and have the new snippets/variables in my project?
• How do we manage both of us working on the same project, and having the need to check in/check out files, create new topics, etc. - what should our 'workflow' be?
• Thanks in advance for any assistance/tips that any of you can provide!

Author Care responded

I recently faced a similar situation (we use TFS here incidently). What I did was to split the main help project into a merged help system with a master project and sub projects and then enforced a strict rule that only one author may checkout one project at a time. Our TFS revision control software was configured to forbid multiple checkouts of the same material.

Whilst you can both work on different topics in the same help project simultaneously in my opinion this is a messy way to author.

The golden rule here is to keep things simple and robust and don't be swayed by non authors in your course of action.

Then Gravenstein added this great post

I like Author Care's golden rule: keep things simple and robust. This topic touches on the three basic ways of sharing help authoring tasks. In order of complexity:

1. Serial authoring. If you don't need to have both authors in the project at the same time, you can simply take turns working on the project. Just pass the files back and forth as needed. This is the most simple and robust approach.
2. Merging projects. If you need concurrent authoring, then, yes, this is a simpler and more robust approach than source control. However, this only works if you can partition your material and your work assignments into two or more clearly-delineated parts. Merging projects can be a great solution, but it doesn't fit all cases.
3. Source control. If multiple authors need concurrent access to the same material, then source control is the simplest answer.

Here are some tips and observations, based on my experience with RoboSource Control, in no particular order:

1. Source control works best on small-to-medium-sized projects. Large ones can be unstable.
2. Set it up to restrict file checkouts to one author only. Allowing two authors to work on a single topic simultaneously is bad.
3. If possible, try to work in different areas of the project that don't touch. Remember that a single change in one topic can ripple out to many related topics. (For example, if you change the filename of a topic, every link to that topic must be changed.) If someone else is working in one of those related topics, you will not be able to complete your initial change.
4. Make backup copies of your projects regularly, even though they are in source control.
5. Create an administrator account to be used just for that purpose. Don't use that account for regular authoring. Don't give everyone administrative privileges.
6. Designate one person as the administrator. Have at least one backup administrator. These will be the people who set up user accounts, override checkouts ("I need that file, and Joe is on vacation!"), resurrect old files, sort out source control conflicts, etc.
7. Check in files as soon as you're done with them. Don't leave them checked out longer than necessary.
8. If you have large projects, your virus scan utility can really degrade performance during certain operations, such as the initial "get" of project files. If this is the case, you might be able to configure your antivirus program to be friendlier to these source control activities.
9. The help authors should stay in close communication. Let each other know what you're doing, especially if you are doing something radical like moving folders around. Be ready to check something back in if someone else needs it.
10. Give a lot of thought to how your project is structured. Consider file structure, naming conventions, etc.
11. Some actions are more source control intensive than others. (Moving, deleting or renaming folders are biggies.) Your project is vulnerable while these changes are in progress. If something goes wrong before the process is complete, you can end up with a mess on your hands. For example, let's say there's a network glitch while you're moving a folder, interrupting your connection with source control. You can end up with RH thinking that the folder is in one place, while source control thinks it's in another. The result is broken links and missing files. Time for the administrator to step in and sort things out. This is almost never a problem for small projects. It becomes a real issue for large projects.
12. If you're getting close to a deadline, DO NOT pick that time to reorganize and rename files and folders.
13. Follow the correct procedure for adding a project to source control. Doing it wrong will really mess you up. Adding a project to RoboSource Control is easy. I can't speak for other source control solutions.
14. You might find it necessary to rebuild your cpd file more often than with non-source controlled projects.
15. Have I mentioned lately that you should back up your source files?

Followed by another from her dealing with the specific questions

If one author is creating index keywords, when another has files checked out...I think it depends on how you have your indexing set up, whether the entries go into the topics or into a single file. (Feel free to jump in on this anyone.) If what he is doing requires a change to a topic that he can't check out, then I don't think he can complete the action. You could test this and see whether it's a problem or not. If someone is doing a large-scale action, it might be better for the other authors to stay out of the project while it's going on.

When someone creates new snippts or variables, is it best to check them in immediately...I would think that sooner would be better than later, but that'll be up to you and your team to decide. Be sure to keep each other informed about what your doing in your shared project.

How do we manage both of us working on the same project...what should our workflow be? When you open the project, get the latest version of the files. If you are working in unrelated areas of the project (recommended), you process will be more or less the same as in a non-source controlled project. Check in topics, especially any common files, as soon as you're done with them. If you need to make any large-scale changes to the project, discuss them in advance with the other writers, and arrange to do so while they are not in the project.

Truly, you and your team need to decide what your workflow is. Will you specialize, or will you decide that everyone does everything? For example, for consistency, you could decide that one person is in charge of laying out the structure of the project and creating each new topic, while the other person focused on technical content. Will you work only in folders A-F, while your neighbour works in G-M? Who will be the source control administrator?

Finally Amebr added this

If both of you will be working on the same project every day, I highly recommend getting into the habit of deleting the cpd first thing each day. (I find doing it first thing every day means I don't forget on the one occasion when it's actually necessary. ) I tend to do a Get as well to ensure I have all the latest files. This will show up any issues if people have been moving files around (broken links, missing topics, etc). RH 8 I think brought in a checkbox that deletes the CPD automatically on close.

However, if your project is one that takes 20min or more to re-build then this won't be practical. In this case, communication is key. Tell each other when you are about to rearrange, create, delete topics, etc so you can delete the cpd and get the latest files after these changes to ensure everything is synced. If you can, plan for one person to make all of these changes at one time to minimise how often you have to delete this file.

And backups outside of VSS are also useful to deal with RH deleting added files and adding deleted files in source control because it was out of sunc with VSS - while possible to get everything back from VSS, sometimes it's just easy to copy from a zip backup.

Note from Peter Grainge

Having read through that, you might understand why I avoid source control. It does have its place and in some scenarios it is the only sensible solution. However, the answer is to keep it simple and robust as Author Care said. In my world I can do that without source control.

Many thanks to those who provided great responses to La Kisha's question.

The full thread can be found on the RoboHelp Forums, click here.

I don't normally cover source control issues but regularly people have problems with what should and should not go into source control. Laurin and Leon have often responded so I thought it might be worth pinning Laurin's latest reply here.

"There aren't very many files that RoboSource Control excludes. Let's see, a quick tally of my RH6 webhelp project shows the following to be excluded:

* projectname.cpd
* projectname.pss
* projectname.hhp
* projectname.trl
* ehlpdhtm.js

That's not very many, but the consequences of adding them to RSC are severe--things get very messed up, very fast. That's why I always let RH control the upload into RSC. Not an option if you're not using RSC, I realize."

UPDATE 5 July 2020

The following information was posted in this thread by an Adobe staff member in relation to RoboHelp 2019 New UI.

"Files inside .rh folder need not be checked-in to version control.

Topics kept inside top-level-foldername/.rh/.username.fr.cache/contents have topic files whose text is saved here for find and replace feature. We find in these files for text search.

Files like .username.db.json is for reading the project while opening. Project open is faster with this cache file.

File .username.preferences.json contains detail related to recently opened files, generated outputs etc.

So yes, recommendation is not to check-in these files to version control. We make a ignore list of these files for our out of the box version control sysytems like GIT, TFS etc."

The short answer is No. See this page in Dropbox's online help. The answer is probably the same for similar services as their servers would have to be configured as web servers and require substantial band width. Please let me know if you find otherwise.

LykkeErik reported

I had this problem in RoboHelp 9 and 11. Here is what I did to fix it (Ashish at the Adobe Help Desk provided the names for the MSXML files to load...and a lot of troubleshooting as well).

1. Delete the .cpd file from the (affected RoboHelp project folder.

2. If using RH11, ensure that RH11 is patched through 11.0.4.

3. Install the following Microsoft updates on your computer (the KB numbers are important. There are many updates with the same name, but different KB numbers):

-- MSXML 4.0 Service Pack 2 (KB954430)

-- MSXML 4.0 Service Pack 2 (KB973688)

-- MSXML 4.0 Service Pack 3 Parser (KB2758694)

4. Reboot your machine (even if it doesn't ask you to).

5. Regenerate your project.

Doing this worked for broken search functions in both my RH9 and RH11 projects.

Update 23 Feb 2017 - If you have RoboHelp 2015, just make sure you have all patches applied. With Service Release 2, RoboHelp was made MSXML version agnostic.

Occasionally someone asks how they can add a toolbar button that opens another webhelp output.

Willam's solution is very simple. Create a toolbar button in the skin and add the line below in the onClick event.

top.document.location='myurl';

Subsitute "myurl" with the path from root of the first help output to the start page of the target webhelp.

If a WebHelp topic is opened directly, the navigation pane is not visible. The properties of the SSL can be set to show a link that will open the navigation pane but with a simple script, you can force WebHelp to always show the navigation pane.

The method was on the Help Essentials site that is now closed. Click here for a PDF version.

If your webhelp runs in a standard browser window, users have access to the browser's back and forward buttons. If you developers deliver the help in a chromeless window, those buttons will not be available by default so you may wish to add your own as part of the help.

Open your skin in the skin editor and click the + icon under Toolbar

In the Text tab, you must enter an Item name. Then enter the text required and / or the image required. (RoboHelp's Gallery has lots of arrow images that you can use.)

In the Action tab, click Javascript and enter the required code in the onClick field.

For the Back Button

top.frames[1].frames[1].history.go(-1);

For the Forward Button

top.frames[1].frames[1].history.go(+1);

Make sure you tick those buttons when you generate the help or they will not appear.

By default, tiles are surrounded by a border that has a shadow.

The border can be changed in the template editor but the shadow cannot. There is a workround for that.

Border

Change the colour where indicated and set the width as desired using 0px if you do not want a border.

Shadow

The option to edit the shadow is not available in the template editor. It can only be removed by directly editing the layoutDiff.css file.

That can be found in Path to Your Project\publish\skins\template name.

Search for

.RH-LAYOUT-HOMEPAGE-TOC-tile-box

and add

box-shadow: none;

This has been reported to Adobe. See RH-9087 | Tracker (adobe.com)

Please add your vote to get it priorised.

 Note that whatever you read elsewhere, some changes may remove this line from layoutDiff.css so check each time you generate an output.



The first thing to understand here is that there are three types of footer in Adobe RoboHelp.

Topic Layout Footers

If you create a Topic Layout and select it in your preset, this footer will appear at the end of your topic. In a short topic, that could be part way up the page. See Robohelp H2022 Non-Scrolling Area if you want to create a non-scrolling footer within a div tag. Position it above and template topic footer you create. Formatting of the footer is controlled by the CSS attached to the topic layout. Tables are useful for positioning. I suggest while working you leave a border to make positioning easier. When done, if you don't want the cell borders, add this to your CSS. Select the table breadcrumb and select this style from your CSS. table.border-none {   border-collapse: collapse; } table.border-none td {   padding-top: 2px;   padding-right: 4px;   padding-bottom: 2px;   padding-left: 4px;   border-width: 1px;   border-style: solid;   border-color: var(--borderonly-theme-color); } table.border-none th {   padding-top: 2px;   padding-right: 4px;   padding-bottom: 2px;   padding-left: 4px;   border-width: 1px;   border-style: solid;   border-color: var(--borderonly-theme-color); }

Template Home Page Footers   Template Topic Page Footers

The footer itself is a single topic that you create the same as any other topic. In your preset you select that topic in the Footer Content field. What differs between the two is the settings you apply in the template editor. Different fonts can be applied, different backgrounds can be applied and so on. For example, I found the default positioning of the content to be left aligned in a topic and centred in the home page. Note also that you can set the template footers to be static or to scroll up after the topic content, including the topic layout footer, or to be static and the bottom of the window. You can download a project with both types of footer set up. In the Oceanic and Studio templates the footer is set up to be static while in the Orange template it will only be seen at the end of long topics. Click here to download it.

To keep things simple, I have kept the new images the same size as the default tile images, 288px by 192px. You can have different sizes but that will require changes to the tile size.

1. Create your new image(s) and save them to your hard disk. The default image type is PNG and I recommend that you stay with that.
2. Open the template and go to the Layout settings.
3. Click Add Image.


4. Browse to where you saved the image(s) and add them.
5. By default they will appear at the bottom of the list. Drag them into the order required.
6. The new images may not appear in the editor but they will appear when you generate. That has been reported to Adobe.

If you later need to replace the default images, for RoboHelp 2022 they will be found at C:\Program Files\Adobe\Adobe RoboHelp\resources\data\template\layouts\frameless.

Sometimes I see posts on the forum where a user has messed up their template somehow but they don't know which change has caused the problem.

The problem they face is not know what customisations have been made. Adobe gave me this tip.

1. In the project with the problem template, right click the template and select Show in Explorer. You will see a file layoutDiff.css.
2. Make a copy of that file somewhere outside of the project.
3. Next create a new template of the same type giving it a slightly different name. Perhaps Orange_Clean so that you know it is a non-customised template.
4. Repeat Step 1 for the new layoutDiff.css and save that somewhere outside the project. You could rename this layoutDiffClean.css and save it alongside the file saved in Step 2.
5. If you have a file comparison tool such as Beyond Compare, open both files in it to see the differences.

All customisation is saved in layoutDiff.css so by comparing the two files, you can see what changes you have made. You could open both files in a text editor and visually compare them.

Hopefully you will be able to spot a likely candidate for what is causing the problem. Otherwise it is a case of reversing a few differences at a time until the template works again.

See Skins / Templates.

This method was found for RoboHelp 2019 New UI but it should work for later versions.

No matter what you do in the skin editor or CSS, you can't get rid of this white border alongside and below your topics?

In your output locate the folder (template\<skin name>\layout.css), towards the end of the file. By default it will be set to a hex value as shown.

div.topic {
background-color: #ffffff; }
Change that as required.

For an RGB value it would be as below with your values.

div.topic {
background-color: rgb(119, 119, 119); }

In other skins you could create a CSS file with this definition and add it to User Assets. Unfortunately that option is not available in this skin so you need to make that change whenever you generate.

When you click one of the tiles, what happens next depends on the structure of your TOC and a skin setting.

By default, it the tile (top level book) has nested books, you will see a second home page. The order of the tiles in the second home page is the same as the first home page, as set in the skin's Layout > Home Page. That cannot be changed.

What you can do is deselect Drill Down in the skin's Home Page settings. Then the help will open at the first topic or book below the tile clicked.

For some projects, the tiles are just too large. Resize the tile box and the text doesn't move with it. Once Jonathan had explained one change and some other bits, I managed to get what was wanted. These details were with the Oceanic frameless skin but should be similar with other skins that have a home page with tiles.

Open the skin in the skin editor and go to Home Page > TOC Tiles.

tile-box

Change the height and width as required. I set them both to 100 px.

details-box

Change the height and width as required. I set height to 50px and width to 80 px.

Click the icon next to margin and set a top and bottom margin. I set top to -80px and bottom to -6px. Note these are minus values. The top brings the text closer to the icon and the bottom gives additional space between two rows of icons.

If you have different tile-box dimensions, you will need to change the margins until get what you want.

title-box

No changes made here.

title

With the reduced size tiles, you will probably need a reduced size font. I reduced it to 0.8 rem. You will also need to watch for long titles. They will get truncated but the user can hover over them to see the full title.

images

As you can see, the original images no longer fit. Either substitute the original by creating your own to fit the tile size you have set or resize the originals. The can be found in the publish > skins folder of your project.

*****



The other information that Jonathan gave that may help the more technical is this.

"The tile-box sits behind the details-box so reducing the height of that won’t affect the position of the details-box. There are basically 4 layers starting with the tile-box. The details-box, the title-box, and the title are all sat on top in that order."

Classic Versions

To change the TOC and Index fonts using Classic Versions, locate and open the layout.css for the skin.

- If you know the font required will be on the users' machines you only need the toc-holder and/or idx-holder definitions shown in blue. The "font-style" and "font-weight" lines are optional.

- If you cannot be certain of that, you need to use the @font-face method and include all three definitions. How is described elsewhere on my site. Click here.

To edit other skin fonts, you need to first identify the style name using the method described for the New UI versions, then edit the layout.css file as described above.

****************************************

@font-face {
font-family: "Quicksand";
src: url("Quicksand-Regular.otf");
}
.toc-holder {
font-family: "Quicksand";
font-style: italic;
}
.idx-holder {
font-family: "Verdana";
font-weight: bold;
}

****************************************

New UI Versions

Responsive Skins

For the TOC and Index in responsive skins, see the instructions above but add the above definitions to a CSS named as you wish. Add that file to User Assets as described below.

For other parts of the skin see the instructions below to see how to identify the style name and then amend it as in the prevous paragraph.

Frameless Skins

If you know the font required will be on the users' machines, use the skin editor for frameless skins.

For fonts where you cannot be sure the font is on the user's machine, you still select the required font in the skin editor but you also need to add the @font-face definition to a CSS file that you then add to User Assets.That is described in more detail in the demo on my site.

****************************************

Identifying the Style

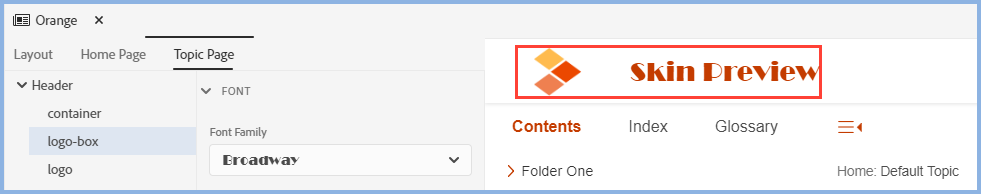

Go to the skin editor and locate the field to be edited.

Set the font to something that you know is not used elsewhere in the skin, Broadway in this example and generate an output.

New UI Users

In the output locate the Template folder in the skin used and go to userstyles.css.

Search for the font name in that file. Using this example, you will find the style below.

.RH-LAYOUT-HEADER-logo-box {
font-family: Broadway;
}

Copy the style definition but do not amend it there.

Add the style to a new CSS file or one that you are already using in User Assets.

In the skin editor go to Layout > User Assets and click Add Asset. Browse to the CSS file and add it. You also need to add the font file (Quicksand-Regular.otf) to User Assets,

Classic Users

Locate the layout.css and search for font name there. This file may open with all the styles in a single line, if it does download Brackets and use its Beautify feature to make it easier to read. Edit the definition there. You will need to add the @font-face definition to the file as described in the demo on my site.

The requirement was to have a wide company logo without it stretching and distorting to fill the header height and requiring too much width.

Let's say the required logo was the red area you see below.

What was happening was that was the logo stretched to fill the height and became indistinct, it also wanted too much width in the header. The solution was twofold.

What I did was increase the canvas height using Snagit. Note canvas height rather than image height. That gave me space above and below the image which retained its original size. That space was then filled with the same colour as the heading.

That made the total image height greater so it didn't need to stretch and retained its clarity.

In the skin editor I then replaced the original image with this new one. I also adjusted to Logo Width to suit the image.

The end result was that the logo part of the image was the size required and the area above and below looked like it was part of the header.

Willam explained how to do this on the RoboHelp forums.

This information for Classic versions only.

If you have created your own layout and want it to appear in the Gallery, export the layout as a SLZ file to
C:\Program Files (x86)\Adobe\Adobe RoboHelp 2017\RoboHTML\ResponsiveHelpExt\Layouts\en_US
Willam's full reply is on the RoboHelp forums

Mark did. See his answer on the RoboHelp forum.

You can simply generate an HTML5 output and when viewing it you change the size of the window. That way though you cannot see the dimensions of the point at which a layout changes. If you use the Chrome browser, the developer tools can come to the rescue.

In Chrome open the output you want to view, then click the top right menu and click More Tools > Developer Tools or press CTRL + Shift + I. Then click the icon shown or press CTRL + Shift + M.

You can manually drag the window around and you will see the dimensions changing or you can input your settings.

When a book name is too long for the space in this layout, it gets truncated and followed by an ellipsis, as below.

A forum poster asked how to get rid of the ellipsis.

Willam responded:-

If you search for the text 'text-overflow: ellipsis;' that will take you to the correct location.

The TOC grid consists of a DIV element with a hyperlink and a label. The label truncates the text if it doesn't fit. By removing the white-space, text-overflow and overflow properties, you can get the text to show up. From there on, you can change the DIV element and hyperlink to correctly show the text you want to.

I asked Willam about changing the font size as well or instead as I thought that too might help. Willam then added the following to the post:-

You can change the font size of the blocks so that they show more content. A smaller font set will allow for more text to be displayed. In your CSS, locate the first line below and add the font-size line below:

div.frontpage-toc.grid-5 div span.label {

  font-size: .75rem;

}

If you add a font size as above, more text will be displayed. The bolded 5 is the number of tiles selected to be displayed at the front page. So if you use a four grid row, search for grid-4 instead of grid-5.

There is no need to set the font size for every device separately.

REM is a percentage of the page's base font size. You could also use EM or %. REM is generally easier to work with. Avoid point sizes or other set font sizes as they will not scale very well on different devices.

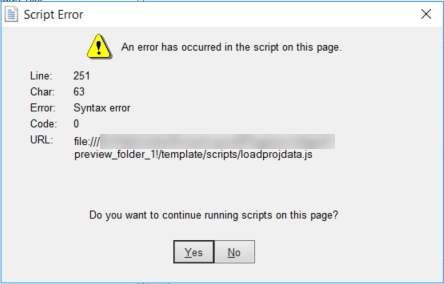

Seeing a script error like this when previewing an HTML5 layout?

See Willam van Weelden's solution on Iconlogic's blog.

Classic Versions

Classic versions only support Responsive HTML5 help. To open responssive outputs with a filter applied, use the format:-

path\index.htm\?filter=filtername - where index.htm is your start page name.

The filter name should be as seen by the user.

New UI Versions RoboHelp 2019 onwards

In both frameless and responsive outputs you can specify a default tag so that the help always opens with that filter applied. If you need to supply a URL to open the help with a filter applied, format it as below.

url?f=taggroup:tagname

where URL is what would open your help without any filter applied. Note that it is the tag group that is used, not any group set up in the Dynamic Content Filters.

Using Map IDs, it was the case that if you opened a topic directly, it would display with the full layout including the TOC. After applying Update 4 to RoboHelp 2015 or in RoboHelp 2017, that will no longer be the case. Instead the topic will open with just a Show link (the term can be changed in the LNG file). This will also occur if you use URLs in the format PathToTopic/topic.htm.

The reason behind this is given on Adobe's site and is quoted below.

When a topic in Responsive HTML5 output is accessed by clicking on its direct link from Web search, the link gets redirected and the responsive layout is applied on this topic. The Web crawlers (including Google) do not index pages that have JavaScript redirects applied on them.

This meant that authors with their help online were not getting the topics found by Google. To fix this, the redirect has been removed.

If you do not want your topics online or found by Google, here's what to do to bring back the full layout, with thanks to Willam.

USING URLs

Use the format PathToStartPage/index.htm#t=PathToTopic/topic.htm

(Note the #t= between the home page call and the topic call.)

USING MAPIDs

By adding a small script in your topics, you can force the skin to be shown. Nothing needs to change and your users will never see the 'show' link. It basically returns to the behaviour of RH2015 before Update 4. The downside is that this particular script doesn't discriminate between CSH calls and regular links where you may want to just open the topic. Though the script can be amended.

Simply add the script below to the bottom of your topics. You can use a master page footer or manually add the code before the </body> tag. Don't add the script in the <head> as that won't work.

<script type="text/javascript">
function checkHelpWindow() {
if(window.self === window.top) {
rh._.redirectToLayout();
}
}
(function(){
if(typeof(rh) != "undefined") {
rh.model.subscribe(rh.consts('EVT_PROJECT_LOADED'), checkHelpWindow);
}
}.call(this));
</script>

Update 22 September 2017 - This has been changed in Update 2 to RoboHelp 2017. CSH will now open showing the TOC etc whilst still being capable of being indexed by Google where the help is available on the internet.

If content filtering is applied, the radio buttons work but do not show what has been selected in Firefox. Works fine in IE.

This layout was removed in RoboHelp 2017 Update 2 because of various other issues that were found.

Using the Indigo layout -

1. On opening the full merge, selecting one of the "book" icons, expanding it and selecting a topic, that topic is displayed. However, there are no breadcrumbs and the TOC does not synchronise. On expanding the TOC on the right and selecting the same topic, the breadcrumbs appear and the TOC syncs. This should happen on initially accessing the topic.
2. If I open a child directly using File Explorer, it initially shows just the "book" icon as below. As soon as you access a topic, the TOC on the right shows all three outputs. If the full merge is available, then the TOC should reflect that. Also when you click the Home logo, all three books appear. Again that should happen at the outset.
3. If you copy a child output to a location outside the merge and open it. you cannot access any content, including if you search. Quite simply, the child output is non-functional. One of the key things with merged help is that the parent should work with whatever child projects are installed and that they can also be installed separately.
4. If you don't include a child output, any search will fail.

Using the Azure Blue layout:-

The TOC synchronises and this layout does not have breadcrumbs. Otherwise it has the same issues as the Indigo layout.

It would therefore seem that merged HTML5 help only works properly if the full merge is accessed and available. Where merged help is created to break the project for authoring purposes, Items 2 3 and 4 will not be an issue and Item 1 is really just cosmetic. Of more importance are the scenarios where developers point to a child project.

• Accessing a child project directly when it is within the full merge initially gives an incorrect TOC. Also it allows a user access to all the outputs which might not be the requirement.
• Installing only a child project fails completely. The output cannot be used.

UPDATE 8 May 2017: Re Item 4, it seems that merged HTML5 differs from merged WebHelp if less than the full merge is to be installed. With WebHelp, you could just delete the child output folder. With merged HTML5, it is necessary to generate the parent again with that child removed from the list of child projects in the TOC.

See the response from Willam in this thread.

It is always recommended that you do not downgrade a project. That is because internal files can change and the lower version may not read them at best and can corrupt them at worst.

A glaring example of this was illustrated by a bug in 2022.4 that caused issues with generating CHM files. It was found that certain common characters such as quotes were replaced in the output with the undrecognised character below.

Generating the same project in 2022.3 worked but it also corrupted the variables file as its structure was different. Upgrading back to 2022.4 did not repair the damage.

You have been warned.

What to do if there is no option?

If the issue is with generating an output.

1. Zip up a copy of the 2022.4 version of the project so that you have a backup. Save that somewhere safe.
2. Ideally install 2022.3 on another machine. If you cannot, then uninstall 2022.4 and install 2022.3. You can download it from here if you don't have a copy of your download. (Why not?)
   If you have to use the same machine, do not work on any other project until 2022.4 is reinstalled
3. Create another copy of the 2022.4 version of the project and open it in 2022.3 and accept the warning.
4. Do not make any changes other than maybe the output path.
5. Generate your output and test it thoroughly.
6. Reinstall 2022.4 and revert to using the original version of the project.
7. If after generating the output you spot changes are needed, go back to Step 1.

If the issue is with content.

You can try the above but it is with risk and not recommended. First post to the forum to see if it is a known issue and, if not, go to Adobe Support. The email link to tcssup@adobe.com is recommended as it reaches a team dedicated to Technical Communication Suite products including RoboHelp.

Beyond that it is your own risk so backup carefully and frequently. Your first change might work and your second change might wreck the project irretrievably, hence my warnings about backing up frequently.

Try to work around the issue if you can.

AthensSlim wanted to use Save As PDF but with the size set to Letter Size. Whilst you can set the page size when generating a PDF output, that option is not there with Save As PDF.

AthensSlim's solution was to add this to the CSS used by the topic.

@page {
  size: 8.5in 11in;
}

After upgrading from Classic to the new UI some users have found that some or all of their topics are not showing in the Contents Panel. The most likely cause is missing or corrupt FPJ files in the Classic project. There is or should be an FPJ file in every folder containing a list of the topics and sub-folders in it. The upgrade process relies on that file. You can examine the files in a text editor.

This script runs through your Classic project and corrects corrupt files and creates new ones where required. See Scripts.

After downloading the script, backup your project and then go to Tools > Browse Scripts and browse to where you saved it. Close your project and run the script. Then run the Upgrade process again.

CLASSIC VERSIONS

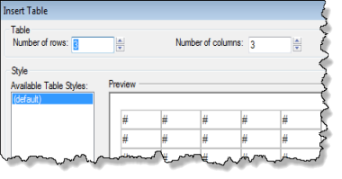

If your CSS file has tables defined, you will not see them if you are trying to add a table to a snippet.

What you need to do is click this icon and select the CSS that has the required table(s).

Then the tables in the selected CSS will appear in the Available Table Styles and can be added. They will work without problems provided all your topics use the same CSS as selected for the snippet.

If you use multiple CSS files, then each CSS will have to have the table defined. The definitions can be different but the table name must be the same. Thus each CSS must have a table style such as MyMainTable but in one CSS all the borders could be blue whilst in another they could be red. The key point is that the CSS for all topics using the snippet must have a table named MyMainTable.

CLASSIC VERSIONS

RoboHelp's search will find results that are in a dropdown or expanding text but the user will not see them when they go to the topic. See Scripts so that clicking the search results will go to the topic with the dropdown open or the text expanded to see the results.

CLASSIC VERSIONS

This problem crops up from time to time and in most cases it is because the CPD file has become bloated. The solution is usually to delete the CPD as covered below.

There were two threads though where this did not fix the problem in RoboHelp 8. See this thread and this thread. There you will see that the initial cause was pinned on the number of layouts but I had seen projects with many more that worked just fine.

Eventually MeWrite identified that it was not the number of layouts but the number of URLs they contained. Lee Passey then identified a workaround. He identified that the list of publication servers is stored in an XML file named "pblsvrs.sss" and by swapping different versions of that in and out of the project, performance became acceptable.

CLASSIC VERSIONS

To delete the build expressions listed in the Conditional Build Expression dropdown, set the value in all layouts in the project to None. Close the project and delete the PSS file. Reopen the project and the dropdown will not contain any expressions.

CLASSIC VERSIONS

Typical Rick! After I told someone that I didn't think you could change the default width when you use RoboHelp's Insert | HTML | Insert Line function, Rick posted the answer! Neat trick sir. Here's what Rick posted.

In RoboHelp 2015 and above it's Insert | HTML |Text Box | Horizontal Line and the version below will be your version rather than 7.00.

You have to close RoboHelp and open your Registry Editor.

All disclaimers apply. Don't come cryin to me if you munge your registry and don't have a backup. Yadda yadda yadda.

Got Regedit open? Cool. Try navigating to this HKEY:
HKEY_CURRENT_USER\Software\Adobe\RoboHelp\7.00\RoboEditor\Defaults

There are many many entries in this spot. You want to locate the one that reads:
InsertHRSample

Double-click that entry and you should get a dialog allowing you to change its value. Mine looked like this before:
<hr style="width: 50%; float: aligncenter;">

I modified it and now it looks like this:
<hr style="width: 95%; float: aligncenter;">

Close Regedit and restart RoboHelp. Insert a Horizontal Rule and bask in the glory of your new desired width.

CLASSIC VERSIONS

From time to time there are posts from people who are finding their project seems a bit slow and they have found the CPD file has grown larger than they are used to seeing. Alternatively they are experiencing an error in one project only.

Often people, myself included, will suggest deleting the CPD file and letting it rebuild. As you can see in my topic on Opening Projects, you should not lose anything if you are using RoboHelp 7 or above. In RoboHelp 8 and above there is an option to automatically delete the CPD so that a new one is created on opening a project.

Don't also delete the XPJ file as I have seen some people suggest. That is a last resort. See Opening Projects for more about that.

I have seen people suggest that if authors have a copy of Microsoft Access, they use that to compact the database (the CPD). This is a standard procedure on any Microsoft Access database that users of that program will be familiar with. It seems a pointless solution to me as deleting the CPD is quicker and supported by RoboHelp. Also all compacting a database does is remove wasted space. RoboHelp rebuilds it using data from other files and that can have the added advantage of removing errors.

For that reason provided you are using a version of RoboHelp with the Clear Project Cache option, deleting the CPD file is the recommended option.

RoboHelp 8 introduced the option to automatically delete the project cache (the CPD file) every time you open RoboHelp. Look in File > Options (Tools > Options before RoboHelp 2015). Note this setting applies to all projects, not just the one that was open when you applied the option. With the project closed, delete the file manually if you prefer

CLASSIC VERSIONS

A small number of people have reported getting this message when trying to delete topics. Initially the only solution was to create a new project and import all the topics and the contents of the HHK and HHC files. Topics could be deleted on another PC with RoboHelp installed but that did not solve the problem next time you want to delete something.

Eventually Doug Wood came to the rescue. His colleague Calvin Wilson ran into the problem and Doug used some tools to compare files in a project. He identified differences in the PSS file and that if you delete it RoboHelp rebuilds with no apparent issues. I have since had confirmation from Adobe that this is a file that can be deleted safely.

So just close your project, use Windows Explorer to delete the PSS file and then reopen your project. You will lose some information about when a Single Source Layout was last created but the problem will be solved.

CLASSIC VERSIONS

Various javascripts are available to provide users with a search function that is limited to the current page. For example:

http://www.dynamicdrive.com/dynamicindex11/findpage.htm

(This snippet originally pointed to another site but the script has been removed. The link above seems to do the same job but I have not tested it.)

ITEM WRITTEN FOR NEW UI. TRY IT FOR CLASSIC

Please see the attached PDF file.

NEW UI

The search funtionality changed with the new UI and in the 2020 version there were many improvement. Nonetheless questions arise and Adobe have responded to these posts, hopefully their answers that include the search logic will help you.

Search Logic.

Special Search for Search.

NEW UI

Look in C:\Users\Username\AppData\Local\Temp\RHTMP.

View this recording of an Adobe webinar. Click here.

CLASSIC VERSIONS

This snippet can now be found as Item 15 in the HTML5 and Skins section.

NEW UI

Click here to see how it works.

Click here to download the RoboHelp 2019 project. You can upgrade it to later versions.

See this page on Adobe's site.

Click here to view the help for versions from RoboHelp 7 up in HTML format or download a PDF.

It used to be possible to download previous versions quite a way back. That has changed. Now you can only download the current and previous versions and any updates issued for those versions.

At the time of writing for example that means 2022.3, 2022.2  2022.1 and 2022.0 for current version and the initial release of 2020 and all updates.

If you have a subscription licence and want 2019 you will have to go to Support. It's the same for users of Classic versions. I believe you will need proof of purchase for Classic versions and you will need your serial number.

See https://helpx.adobe.com/contact/enterprise-support.other.html#robohelp for your Adobe Support options. The email link tcssup@adobe.com is recommended as it reaches a team dedicated to Technical Communication Suite products including RoboHelp.

In RoboHelp 2015 at least, the 64 bit version of Word is officially supported. However Microsoft warn that for compatibility with other apps, not just RoboHelp, it is best to use the 32 bit version of Word.

There are two pages on Microsoft's site that cover this issue.

Click here to see what Microsoft say about the 64 bit version. Note the first heading is "32 bit version is recommended for most users".

Click here to see Microsoft's page on choosing the 32 bit or 64 bit version of Office. Note the section "Limitations of the 64 bit version of Office".

CLASSIC VERSIONS

When you delete an image from a topic, RoboHelp does not delete the image from disk. When you have been working on the same project for a long time, there is a good chance that your RoboHelp project folders contain many unused images that show in File Explorer but not in Project Manager. This can be confusing. But how do you know which images are still used and which images can safely be removed?

Click here for a free script that will delete them from File Explorer as well.

NEW UI

Look at the Unused Files Report.

CLASSIC VERSIONS

Sometimes people post to the forum that they have opened a project and there are red Xs against a lot of topics and all in different folders. They are still there in File Explorer and importing them one by one is a pain. No more thanks to Willam. Click here for a free script that will restore them into Project Manager.

A user reported that search worked just fine until Show Results That Include All Words was selected. Adobe responded that the search included words that were in the Stop List. The Stop List is there so that you can exclude specific words so it was doing its job. Either users must be trained to not use common words (not practical) or you must remove from the Stop List the words that cause problems in your help.

When you import from Word the HTML usually includes stuff only Microsoft apps need, typically MSO Normal. The oft quoted solution to avoid that is to paste into a text editor and then into RoboHelp. Along the way the inline styling is lost. It is possible however to paste straight into Word and then quickly remove all the inline styling.

Paste straight into RoboHelp and then select what you have pasted. Then locate Clear Formatting and it removes all inline styling.

In New UI versions click the Clear Formatting icon in Properties or paste in using Shift V.

In RoboHelp 2015 see the Edit > Character. There is an icon with the letter A and a red X.

In RoboHelp 11 see Format > Clear Formatting.

CLASSIC VERSIONS

You start a process and RoboHelp appears to lock up failing to respond to any keystrokes or mouse actions. Sometimes a dialog goes off screen so you cannot see it is requiring an input. This can happen when you have been using two monitors and then change to one.

Try pressing the Windows key plus the left arrow key a couple of times.

On the RoboHelp forums we regularly see users not quite sure which help format they should use. Hopefully this snippet will help.

The first consideration is where the developers are going to install the help. Will it be on a server, on the user's desktop PC, or on a mobile device such as a smartphone or a tablet?

Let's look at the output options available in RoboHelp.

Output Type	Server or Local	Comment
Frameless (New UI versions only)	Either	This version was introduced in 2019 New UI and is the version where future development will occur. For help that will be accessible from the internet, it works better with Google. This site uses the frameless Orange skin.
HTML5 (From RoboHelp 10 onwards)	Either	This output introduced in RoboHelp 10 allows you to generate various outputs that can sit on a server, on a desktop PC or on devices such as smartphones, Android Tablets and iPads. See the RoboHelp Tour for more information about this output.
WebHelp	Intended to be server based. Can be installed locally but may encounter some issues such as links to PDFs failing in some browsers. Set Mark of Web option if this output is to be installed locally and viewed using IE.	This output is no longer used in the New UI versions of RoboHelp/
WebHelp Pro	Can only be server based. Requires the installation of RoboHelp Server on each server from which the help can be accessed. If your customers require the help on their server, they will require a licence. This output is no longer used in the new UI versions of RoboHelp. Instead both the HTML5 and Frameless outputs can be used with RoboHelp Server.	Often users think this is simply a better version of WebHelp and publish to servers that do not have RoboHelp Server installed. It will not work properly without RoboHelp Server.
Microsoft HTML Help (CHMs)	Now effectively only for local installation. See CHMs on a Network for the full story.	This was beginning to look like a doomed format with little visual appeal. Microsoft have not updated the essential compiler that all Help Authoring Tools have to use for over ten years. Fortunately in RoboHelp 10 Adobe have allowed WebHelp skins to be applied thereby giving this format a new lease of life. See the RoboHelp Tour for more information about that but note it is not supported in the New UI versions.
Desktop AIR Help	Local only. This output is no longer recommended and does not ship with the new UI versions of RoboHelp.	This new format was introduced with RoboHelp 7. It did not prove popular and no longer ships with RoboHelp. See the Archive page.
Browser Based AIR Help	Server only.	This output is no longer recommended and does not ship with the new UI versions of RoboHelp. See previous item.
FlashHelp	Server only.	Flash is no longer supported so it follows this output will not work now. FlashHelp was effectively WebHelp with an Adobe Flash front end that some find more, well, flashy.
FlashHelp Pro		Flash is no longer supported so it follows this output will not work now.
WinHelp		This is a very old form of help that shipped with earlier Classic versions. It will no longer work.
JavaHelp and Oracle Help		Most other Help Authoring Tools no longer support these formats that have not been developed themselves for many years. They are not supported in the New UI versions of RoboHelp.

Are you wondering whether DITA is right for you organisation? If you are, then start with this link, it provides some questions and answers that will help you decide.

Click here for Cherryleaf's article (Added 18 March 2017).

CLASSIC VERSIONS - NOT TESTED IN NEW UI

If you want some content to only be included when a user prints a topic, try this.

Add the following to your CSS. It creates a class called copyright and tells it not to display on screen but to display when printed. As written below, the print will be in the same style as Normal but you can change that to suit.

@media screen

{

p.copyright {display:none;}

}

@media print

{

p.copyright {display:block;}

}

Then write your content and apply the copyright class. It will look something like this.

<p class="copyright">Copyright <?rh-symbol_start name="Copyright" ?>©<?rh-symbol_end ?> 2011 My Company Name</p>

This was written for someone who wanted a copyright notice to appear in print, hence the class name. You can change it to whatever you want.

Yes and no. There is a limit of 32 mb of text but the file size can be bigger because of graphics etc.

Here's the low down on Microsoft's site.

With Related Topics when you insert the button you are presented with a list of topics in the project and you link those to the button.

With See Also you select a Keyword when you insert the button. Those keywords are ones that you have entered as you create topics. You don't have to stop and figure out which topics get displayed. RH displays all the topics where you have entered the keyword in the properties. So every time you create a topic about Pop Music you enter the keyword Pop, every time you create a topic about Classical Music you enter the keyword Classical. When you add a See Also, you select Classical and all the topics with that keyword will display when the user clicks the See Also button.

I saw this link while browsing and made a note of the site below but not of where I found the link. So my thanks to whoever found the site, whoever you are!

OK. Sometimes the problem is not learning the tool but learning the job. That's where this link might help you. I don't agree with all the detail but nonetheless there is some good information. Approach what you read this way, as you read the pages, don't treat them as gospel but as food for thought. There's certainly more information about your new environment here than anywhere else I have found.

Click here. to go to Wikiversity. Enoy the course!

People often ask whether or not it is necessary to publish all these files. My standard reply is "only if you want the help to work!"

The short answer is Yes. In response to a recent forum thread on this subject Gravenstein posted:

The RoboHelp help topic "Output Files for WebHelp" states:
"...The output files located in !SSL!\WebHelp\whgdata are HTML data files used in Pure HTML versions of WebHelp."



"...The output files located in !SSL!\WebHelp\whdata are HTML/JavaScript data files used in DHTML versions of WebHelp running on earlier browsers (such as Internet Explorer 4.)"



"...The output files located in !SSL!\WebHelp\whxdata are XML data files used in Java applet and DHTML versions of WebHelp running on later browsers (such as Internet Explorer 5 and Netscape Navigator 6.)"



Reading that, it would seem like you could delete at least whdata (and maybe whgdata) if you knew your users were running on a late-model IE only. I haven't actually done any testing on this, but I have thought about it. Is there more to it than meets the eye?

Gravenstein indicated that in her project these files amounted to about 300mb. My take on that is:

We are talking about less than half a CD here and into freebie memory stick territory. Against the risk of breaking the help in some way that nobody can foresee until months later when this is forgotten, it doesn't seem worth even a vague thought. I take your point about what is in the help but there's always the risk that it was either never 100% correct or that program changes have rendered it incorrect. Such things happen in any organisation. New developers, new authors etc, I'm with MergeThis. It isn't worth the risk for the saving.

Sometimes the pressure to reduce the size of the help comes not so much from considerations of the server on which it will ultimately reside but on the media that will be used to deliver the application and the help, or the fact that it has to be downloaded. Ask the developers if all their folders and files are needed. When they look horrified that anyone could be so stupid as to ask, just smile back.

In connection with topic reviews, the question was posed as to whether hidden text could be inserted into HTML other than via the comments tag.

Quite simply you add style="display: none;" to a tag so that it appears something like the html below:

<p style="display: none;">Hello World</p>

OR

<p>This is some <span style="display: none;">red</span>text.</p>

The text will not be seen nor will there be an empty line or space.

To reveal the text you would have to do a global find and replace changing the style to something visible that you do not use anywhere else. You would search on

style="display: none;"

and replace it with something like

style="color: red"

All the hidden text would be revealed and display red.

The replace needs to be unique so that you can do a reverse find and replace.

The html was suggested by Mike Feimster in connection with another use, namely getting words into a topic so that they would be found by a search even though they are not part of the topic text. Be aware that regardless of why you use this method, if style="display: none;" is in your generated help, the text will be caught by the search function.

Some might argue this will confuse users doing a search as the topic will be offered up but the user will not be able to find the word. That's true so it depends on who your users are and whether this is explained to them.

The new UI versions do not have an option to create a link to topics in other projects. Following a post on the forum Amber Boughen did some research and came up with a method.

Click here to download a project that shows how this can be done. The project has been created in RoboHelp 2019, upgrade it to your version.

Click here to view/download a PDF of the instructions.

Enter "Search CHM" in the RoboHelp forum and there are many pages of threads listed.

First you need MJ's Diagnostics - Helpware Wiki - KB (helpwaregroup.com). That will report any missing DLLs and there is an option to re-register them.

You may also need to reinstall the Microsoft Help Compiler. Unfortunately that is no long available from Microsoft but at the time of creating this Snippet, it can be downloaded from these locations, maybe more.

HelpnDocs

Click here.

Help and Manual

Click here.

The Web Archive

Click here

My thanks to Bill Bloomberg for writing this up.

Compiling HTML Help files for Asian Pacific (AP) languages, including Japanese, Chinese (simplified and traditional) and Thai requires that you change the Location and Locale settings on your computer to match the target language. The Control Panel’s Region and Language dialog has everything you need to change your computer’s native language. It can be deceiving, however, because you must change the settings on three of the tabs, but NOT the fourth. Figuring out which of the three is not intuitive. Here are the steps:

1. Click Start, and then click Control Panel.
2. Double-click the Region and Language icon.
3. On the tabs listed below, do the following:

• Format - click on the Format down-arrow and select a language. In this example, let's choose "Chinese (Traditional, Taiwan)".
• Location - click on the Current location down-arrow and select "China".
• Keyboards and Languages - don’t change anything here, unless you actually have a Chinese keyboard and enjoy trying to decipher Chinese characters on screen. This tab changes the language of many of the items displayed on your screen and in Windows Explorer, and expects that you will be entering data on a Chinese keyboard, which I assume is slightly different from an English one.
• Administrative - click the Current system locale down-arrow and select "Chinese (Traditional, Taiwan)" again.

4. When prompted, restart your computer.

You are now ready to compile your Chinese CHM files. When complete, open the CHM and test the Search function to ensure that everything works properly.

That’s all there is to it. I have tested this solution only on Windows 7 Enterprise and Windows 7 Home Edition, but it works just fine with both operating systems. The procedure shown above works equally well for Japanese, Thai , and Simplified Chinese.

IMPORTANT - For all other languages, none of this is necessary. Keep your language and locale set to your native language (English) and your should be able to compile in all non-AP languages.

****************************************

See this thread for Tami's post.

See this thread for information about the TOC and Index showing garbage characters.

Trying to open a CHM and getting this message is something that seems to crop up regularly rather than frequently.

Usually the answer is to run MJ's diagnostics and it will find some DLL not registered and fixing that fixes the problem. There is more information in both of these threads.

Thread One

Update 17 April 2019 - The link to the second thread changed and my virus checker warned me against using the site.

However one person posted that the problem only occured with one CHM and, of course, an unregistered DLL will, in most cases, affect all CHMs. Digging deeper into the second link I found another cause of this message that would only affect specific CHMs.

"I finally found out that the error was caused because the name of the directory containing the .chm files had non-English characters. After changing the directory's name to simple English - everything works."

That is probably the first thing to check out if you have this problem.

From time to time we see questions about whether the current version is 1.3 or 1.4.

The answer to this confusion is on Microsoft's site. The following extract explains the situation. See the full article.

Important  Please note that the latest version of the HTML Help technology is 1.4, as is the SDK. The latest version of the HTML Help Workshop download is 1.3. As of June 2009 there is no HTML Help Workshop 1.4.

As Rob Chandler explained on the HATT forum (since closed)...

All they are saying is ... don't worry that the Workshop internal version number is 1.3 while the HH Runtime is 1.4.
