PDF Output

In Classic versions of Adobe RoboHelp Microsoft Word was required as part of the process of creating a PDF file, that is no longer a requirement.

Before You Start - Java

Windows Machines

PDF generation requires your system to have Java 64 bit Runtime installed.

 If you are in a corporate or government environment, you must not install Java without first liaising with your IT department. They will likely want to undertake this installation themselves.

You need to download Java 8 Update 251 or above which will install the Java Runtime Environment (JRE) 1.8. The Oracle site offers different downloads according to the specification of your machine.

Installing Java should create a registry entry that will allow Adobe RoboHelp to generate a PDF output. Should the Java installation fail to create that registry entry you will need to create a system variable.

 If you are in a corporate or government environment, you must not create this variable without first liaising with your IT department. They will likely want to undertake this task themselves.

  1. Click Settings on the Windows 10 Start icon bottom left.
  2. Click About.
  3. Under Related Settings top right, click System Info.
  4. Click Advanced System Settings.
  5. Click Environment Variables in the Advanced tab.
  6. Click New under System Variables.
  7. Enter the Variable Name as JAVA_HOME.
  8. Click Browse Directory.
  9. Browse to your Java installation. It should be something like C:\Program Files\Java\jre followed by your version number. For example C:\Program Files\Java\jre1.8.0.251

Mac Machines

To set JAVA_HOME on BigSur and Monterey

  1. From the menu bar in Finder, select Go > Utilities to display a Finder window showing Mac system utilities.
  2. Double-click on the Terminal application.
  3. Create/edit the .profile file in the home folder using the command vim ~/.profile
  4. Add this line to the file
    launchctl setenv JAVA_HOME $(/usr/libexec/java_home)
  5. Reboot the machine.
  6. Launch Adobe RoboHelp.

On Previous Mac OS Versions

  1. In the terminal run the command below
    echo export "JAVA_HOME=\$(/usr/libexec/java_home)" >> ~/.bash_profile
  2. Reboot the machine.
  3. Launch Adobe RoboHelp.

Before You Start - TOC Changes

It is vitally important that before you generate a PDF, you understand the way that TOCs have changed will affect your output.

See the Why the Change and What has Changed sections in The Table of Contents topic.

Creating a PDF Output

Click the + icon in the Output Presets panel to create a new output and configure it as below.

The first time you generate an output from a project upgraded from a Classic version, you need to double click the preset or select Edit from the context menu and edit it as below.

After the preset is configured, use the icons above the list of presets or hover the mouse over a preset in the list to generate the output, publish it, make further edits or duplicate the preset.

The configuration options are similar to previous versions and are described in detail in the online help. Variables can be included in the Title. Place the cursor where you want the variable and press CTRL + 1.

PDF files can be created in two ways:-

  • If the PDF will not require any editing after generation, you can use the PDF preset.
  • If you need to make any changes then use the Word (DOCX) Output first. After editing, you can generate your PDF from there using any PDF generator.

Preset Configuration

The settings appear in seven groups as below. What is entered in many of the fields will be clear and notes have been added to assist with others.

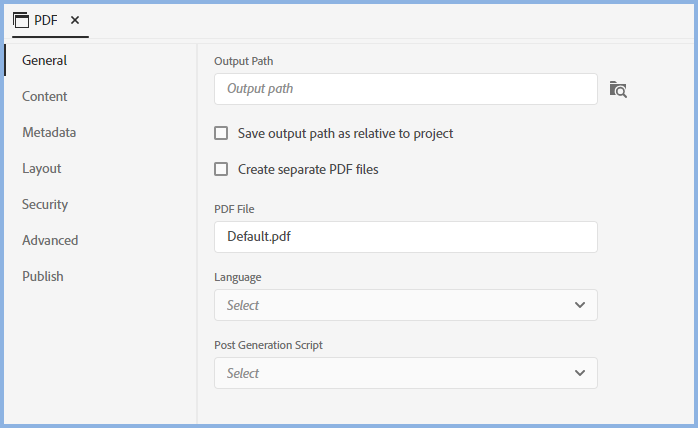

General

Output Path

By default the Output path will be created as an absolute path but you can choose to create a relative path.

Select or deselect the Save Output Path As Relative To Project to change the setting. Adobe RoboHelp will open Explorer to the current folder where you can either click Save Folder to retain the same path or browse to somewhere else.

  • If you are a lone author always working on the same machine, you can choose either but the absolute option is recommended so that you can see exactly where the output will be saved.
  • If there are multiple authors and/or you work on more than one machine in a non source controlled environment, then the relative path option may suit you better.
    This will enable each author to generate to different folders as long as the same relative relationship is maintained.
  • The relative path option will work better if a project will be worked on using both Windows and Mac machines.

Create Separate PDF Files

Select this option and you can then choose between separate PDFs for each topic or for each chapter.

Language

This should be set for the headings of the Index and Glossary pages. The output will then use the terms defined in Labels.

The language setting is also used for hyphenation when any word has to be broken across two lines. The rules to hyphenate are language specific.

Post Generation Script

This allows you to select a script to run after the PDF has been generated.

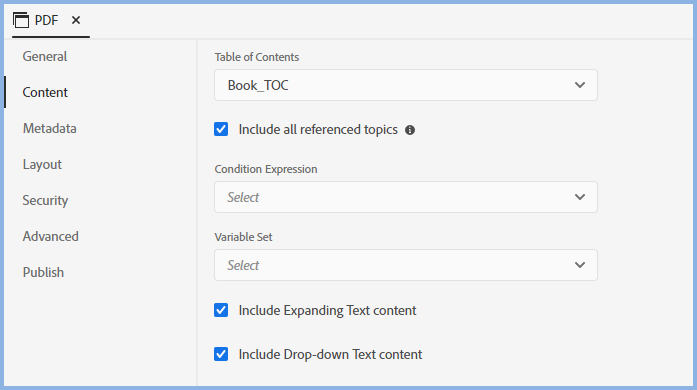

Content

Table of Contents Select the required TOC.

Include All Referenced Topics sets whether or not topics that are not in the TOC but have links from topics that are also get included.

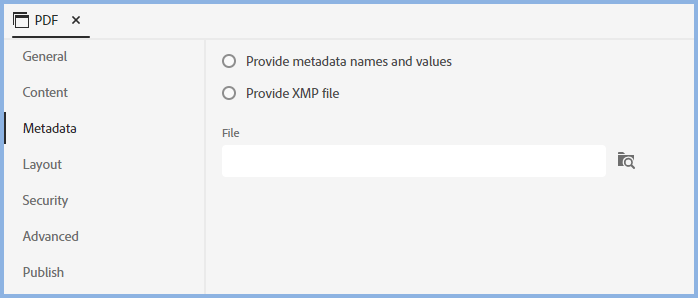

Metadata

When you first select Metadata there are two options.

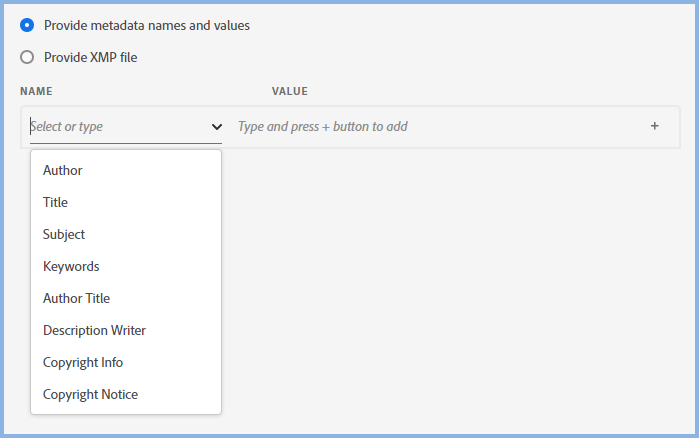

Provide Metadata Names and Values

Click the radio button to display the Name and Value fields. Either select one of the predefined options or type in your own metadata name, then add its value. Click the + icon to add more.

The metadata values added can be viewed in the Adobe Acrobat (Stanard or Pro but not Reader> Properties of the PDF. Adobe Acrobat will also allow the values to be exported as an XMP file for use in other PDF presets.

Provide XMP File

This option allows you to import the properties in XMP file format.

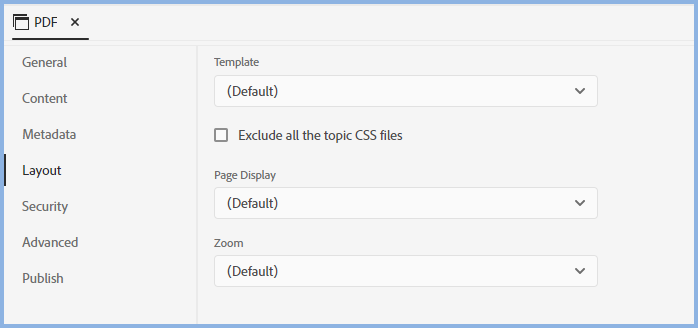

Layout

PDF Templates are described in PDF Templates. Select the required template here.

 It is possible that the CSS created for the template and your topic CSS may cause cascading issues and something may not look right. If that happens, try selecting the Exclude All The Topic CSS Files.

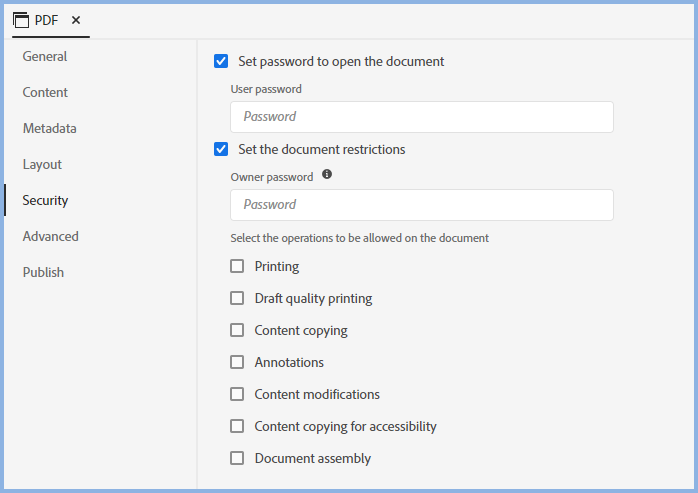

Security

Select either or both check boxes to see the available options.

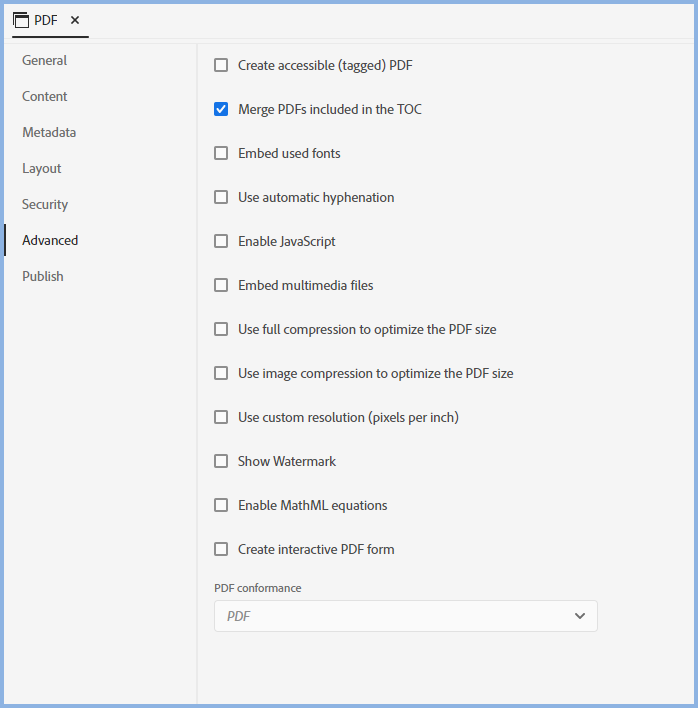

Advanced

Create Accessible (Tagged) PDF Select if required.

Merge PDFs Included in the TOC If your TOC has any PDFs included, they can be merged with the topics so that you have a complete output.

Embed Used Fonts If you are using non standard fonts, select this option to embed them so the user will see the document as designed.

Use Automatic Hyphenation Words that will not fit on a line will be hyphenated using the Acrobat PDF Engine.

Enable JavaScript If you use JavaScript to render content such as MathML equations in your topics, select this option.

Embed Multimedia Files Any multimedia files linked to will be embedded with this option selected. This will of course increase the file size. Users will get a standard Acrobat warning about viewing multimedia files that they must accept.

Use Image Compression to Optimize PDF Size This will compress your image size to reduce the overall file size. Use this if your PDF contains lots of images but check the quality remains acceptable.

Use Custom Resolution (pixels per inch)

Select this check box to change the default of 96dpi.

HTML pages are measured by pixels when the browser displays them whereas PDF pages are measured in inches. If you increase the setting, it will result in greater screen width fitting onto a page. Note this will result in smaller text and images so it's a trade off.

Show Watermark Select this field and enter the wording of the watermark you require.

Please confirm field below are correct.

Enable MathML Equations Select if your content includes MathML Equations.

Create Interactive PDF Form Select if your PDF has fields requiring input.

Track Changes Select if you require the PDF to be enabled for tracking and commenting.

PDF Conformance For most users this should be left as the default PDF. There are many PDF standards and these are included in the dropdown if a specific standard is required.

Output Path

By default the Output path will be created as an absolute path but you can choose to create a relative path.

Select or deselect the Save Output Path As Relative To Project to change the setting. Adobe RoboHelp will open Explorer to the current folder where you can either click Save Folder to retain the same path or browse to somewhere else.

  • If you are a lone author always working on the same machine, you can choose either but the absolute option is recommended so that you can see exactly where the output will be saved.
  • If there are multiple authors and/or you work on more than one machine in a non source controlled environment, then the relative path option may suit you better.
    This will enable each author to generate to different folders as long as the same relative relationship is maintained.
  • The relative path option will work better if a project will be worked on using both Windows and Mac machines.

Generating the Output

Once you have defined the preset, click the generate icon.

Cancelling Generation

While an output is being generated, you can click the Cancel icon at any time.

Generation Errors

When you generate an output using Quick Generate, if it fails for any reason click the Error icon to access the log.

If you generated directly from the preset, you will get an error message. Right click the preset and click View Log.

Viewing the Output

Click the view icon on the Output Presets toolbar. Adobe RoboHelp can create a PDF but it does not install a reader unless it is part of Adobe's Technical Communication Suite. If you don't have a reader installed, you will need to download one.
