RoboHelp 2019 - XML Output

The XML Output is available with Update 4 or higher applied.

Creating an XML Output

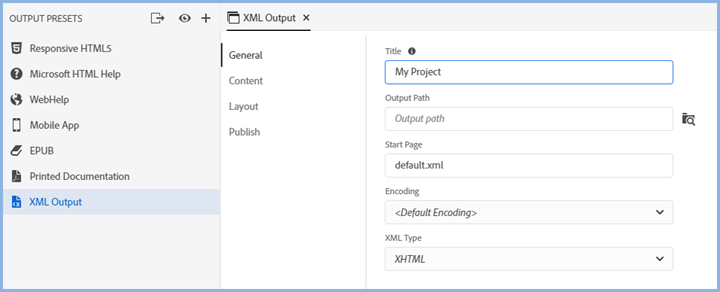

Click Output > Output Settings the first time you generate so that you can configure your preset as required. After the preset is configured, you can either come back here next time or you can click the Quick Generate icon top right in RoboHelp 2019.

The options are similar to previous versions and are described in detail in the online help. Variables can be included in the Title. Place the cursor where you want the variable and press CTRL + 1.

The icons above the list of presets allow you to generate an output, view it or create further outputs.

Whilst you can create a Publish Location for this output, its typical use will be to deliver it to developers. How this is set up is described in Publishing.

Generating the Output

Once you have defined the preset, click the generate icon.

Cancelling Generation

While an output is being generated, you can click the Cancel icon at any time.

Generation Errors

When you generate an output using Quick Generate, if it fails for any reason click the Error icon to access the log.

If you generated directly from the preset, you will get an error message. Right click the preset and click View Log.
